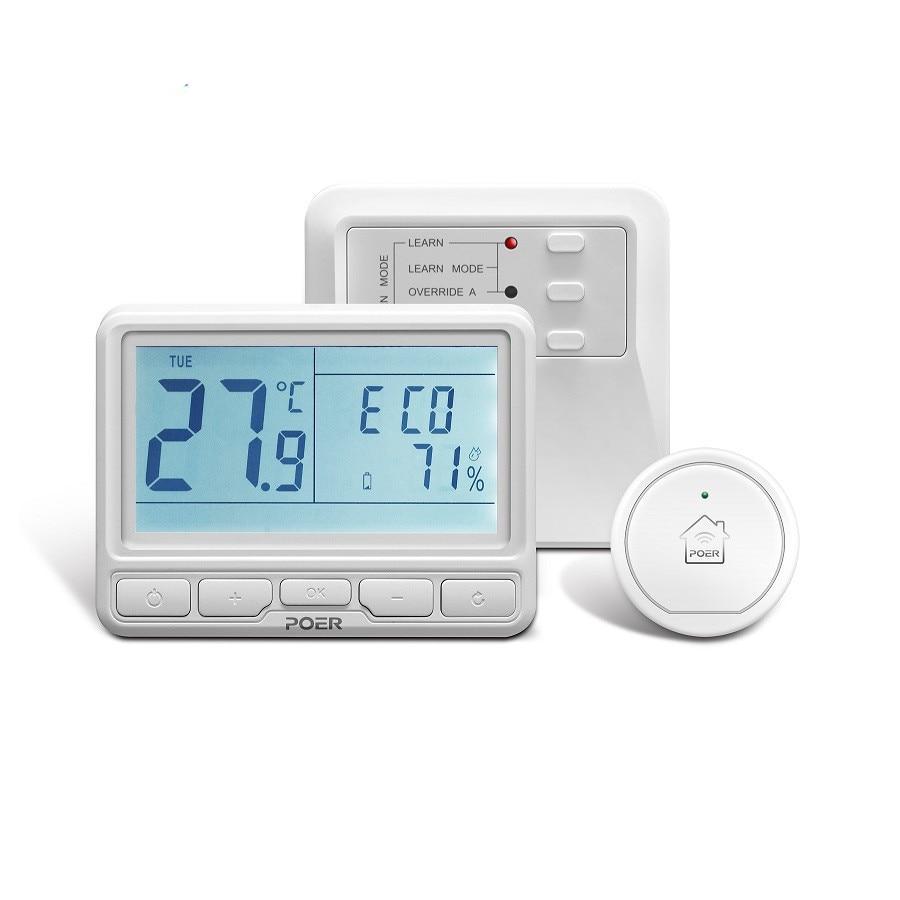

Smart Wifi Remote Thermostat

$219.95 $134.95 134.95

Available Options

Qty

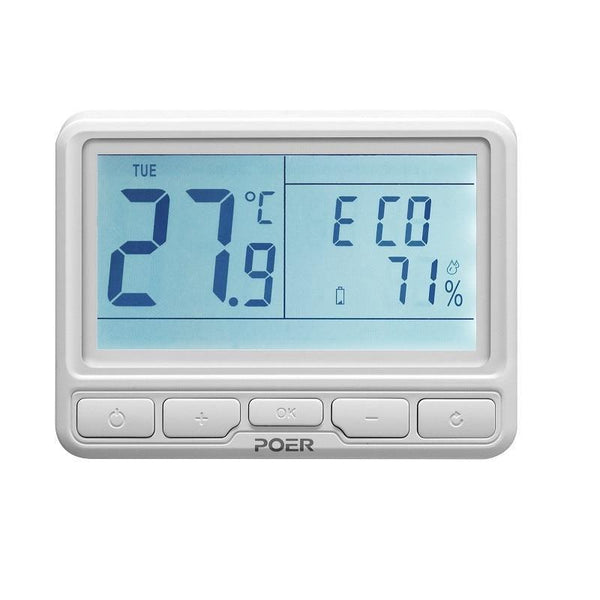

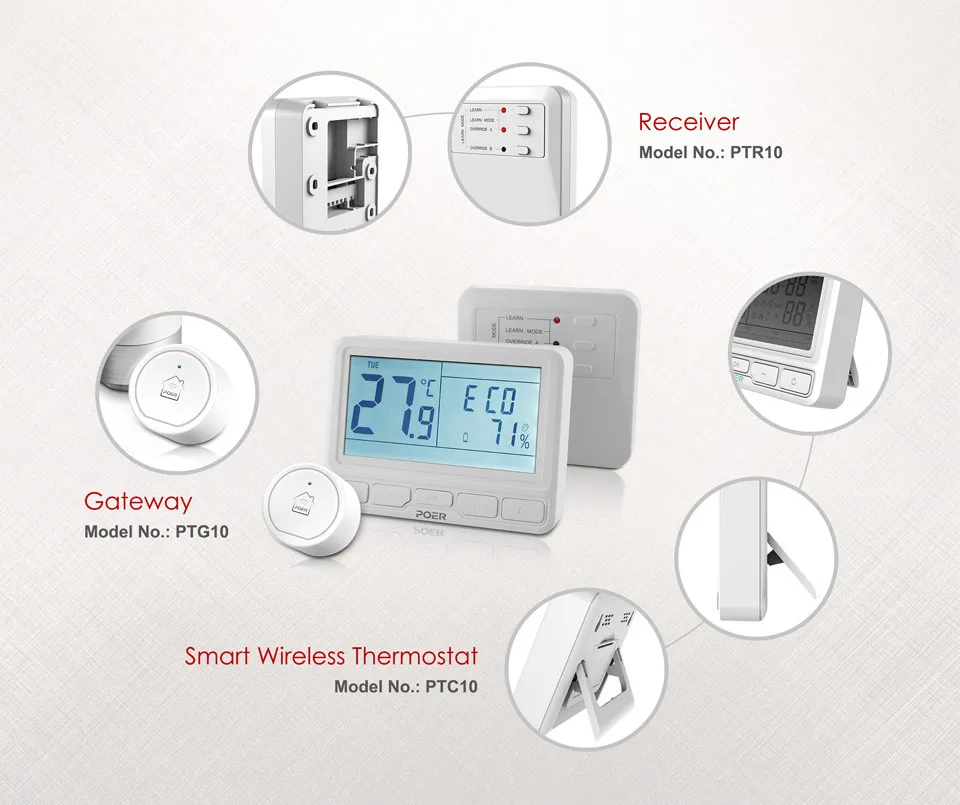

  • Thermostat's Introduction:
1,The PTC10 is an easy-to-use wireless thermostat can be fit on any “wet” heating only system or system with electronic, gas, oil boiler. Suitable for installing new system or updating existed system.

2,Working together with Receiver PTR10, it not only wirelessly switch the heating system On and Off, also change and program the room temperature.

3,Connected to Internet with Gateway PTG10, this thermostat PTC10 could be operated remotely via App by mobile phone, PC or pad; Without gateway, thermostat PTC10 could be used as a normal standard thermostat.

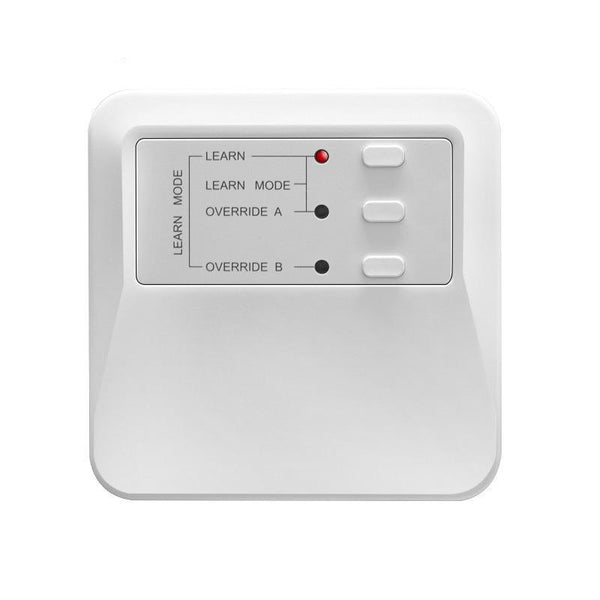

  • Receiver's Introduction:

The receiver PTR10 is wired directly to motorized zone valves or boiler actuator, switch the heating system On and Off by wireless two-way communication between thermostat and receiver; manual operation is available in case.

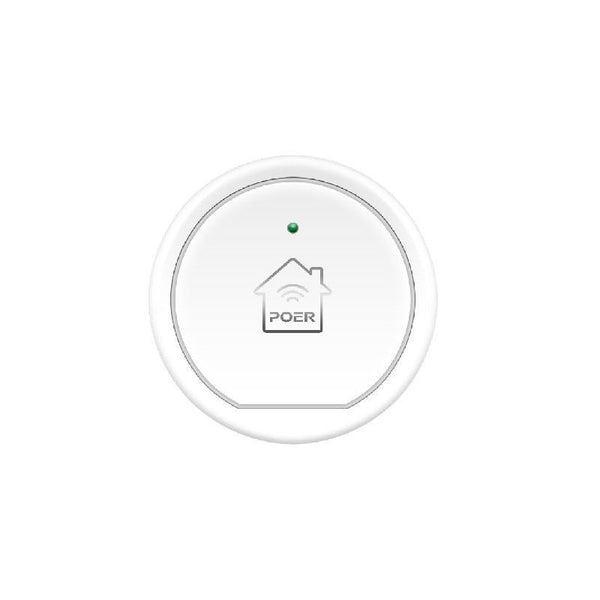

  • Gateway's Introduction:
The gateway PTG10, providing internet access for home smart heating controls, is directly plugged into socket which better nearby home wireless broadband router, no need a spare Ethernet port on the user’s home broadband router.

  • Thermostat's Feature

1, Control and program remotely via POER free App (connecting the unit with Internet by POER gateway), offer the programming maximum convenience and flexibility.

2, Without connection to Internet, works as standard programmable thermostat, max. 7 time periods per day, 5+2 days/7 days/1 day independent programming for option.

3, Wireless two-way communication between thermostat and receiver/gateway by RF.

4, Auto, manual, holiday, ECO and override modes.

5,Frost protection and Valve protection function

6,Optimum Start functionality

7,Memory holds user programs and clock even when power failed

8,Indoor humidity sensor, display the humidity inside

9,Large LCD display with backlight

10,Battery powered with low battery indicator

11,Wall Mounted or Desk Stand to make sure the best location

12,Automatic Summer/Winter time change

13,Child lock


  • Receiver's Feature:
1. One receiver, two heating zones can be controlled
2. Wireless two-way communication with thermostat by RF
3. Override control by manual operation
4. LEDs indicate zones’ working situation
5. Wall mounted
  • Gateway Feature:

1,Wi-Fi connection with Internet

2,Wireless communication between thermostat (valve) and gateway via RF

3,LED indicate working situation

1

thermostat

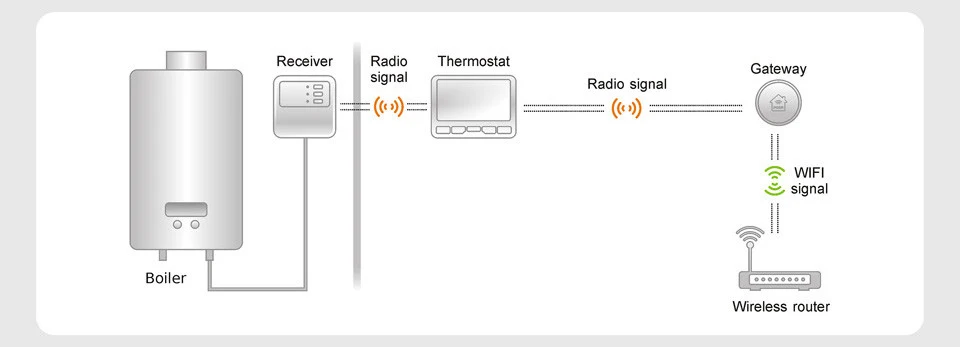

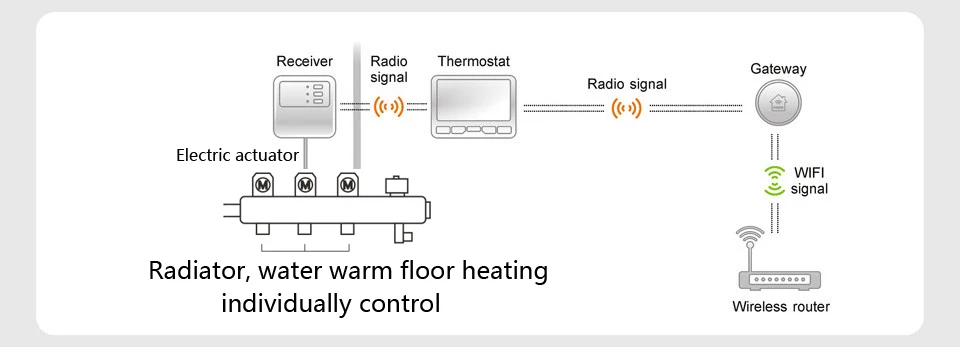

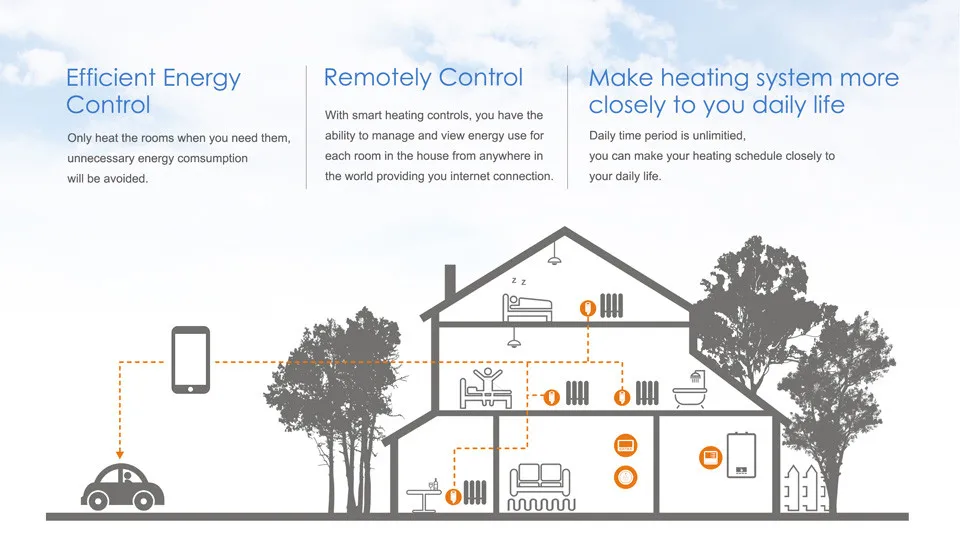

Application Example:


ApplicationApplication2

  • Product Data:
1. wireless programmable heating thermostat -PTC10:

Operating Temperature

0 to 50°C

Control mode

Heating system

Display

LCD with backlight

Transmitting frequency

868 MHz(433 MHz-PTC10-433) 2 way

Communication Range(open space)

100 meters

Power supply

2 x AA alkaline batteries

Battery life

Typically 2 years

Temperature setting range

7°C to 32°C (0.5°C step)

Temperature control accuracy

+/-0.3°C

Measurement interval

every minute

Frost protection temperature

7°C

Humidity range

10 to 90%RH

Humidity accuracy

+/-5%RH

Time display

12 hour/24 hour

Dimensions (HxWxD)

117.2 x 87.2 x 26.6mm

IP class

IP30

Standard

CE

Weight

211g with battery


2. wireless receiver-PTR10

Operating Temperature

0 to 50°C

Transmitting frequency

868 MHz(433 MHz-PTR10-433) 2 way

Communication Range(open space)

100 meters

Power

2W

Power supply

100VAC~240VAC, 50Hz

Switch rating

240VAC 50Hz, 5A resistive, 2A inductive

Switch Type

SPDT relay

Dimensions (HxWxD)

98.3x 98.3 x 31.3mm

IP class

IP30

Standard

CE

Weight

145g

3. gateway-PTG10

Operating Temperature

0 to 50°C

Transmitting frequency

868 MHz(433 MHz-PTG10-433) 2 way

Communication Range(open space)

100 meters

Power

1.5W

Power supply

100-240 AC, 50Hz

Connectors

Internet via Wi-Fi(2.4G)

Dimensions

60.5ר51 mm

IP class

IP30

Standard

CE

  • Dimension:

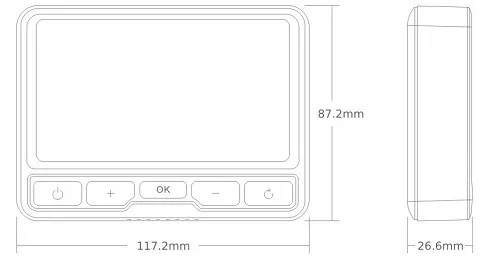

1. wireless programmable heating thermostat -PTC10:
thermostat dimension

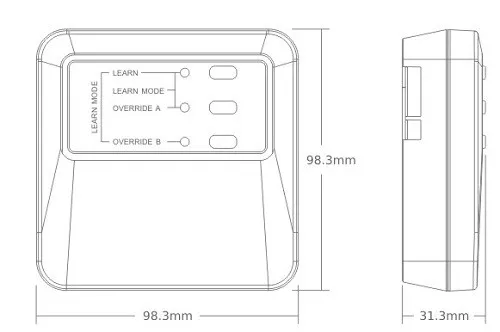

2. wireless receiver-PTR10:
receiver dimension

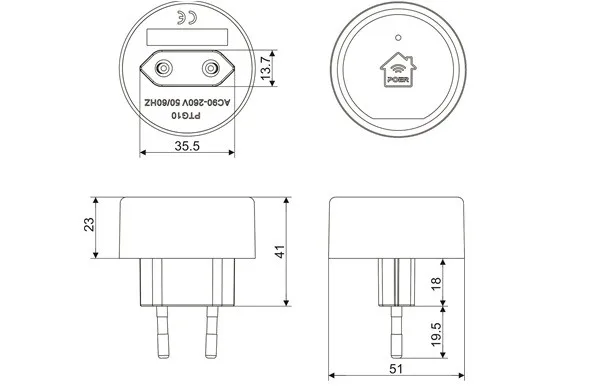

3. gateway-PTG10
gateway dimension

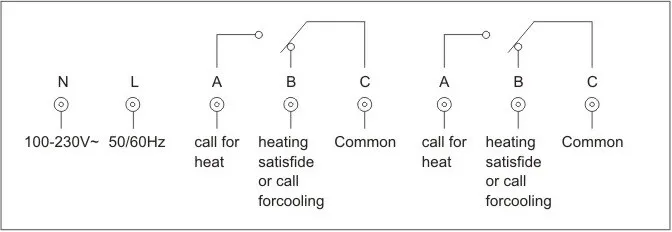

  • Receiver's volt free contact:
Receiver's volt free contacts

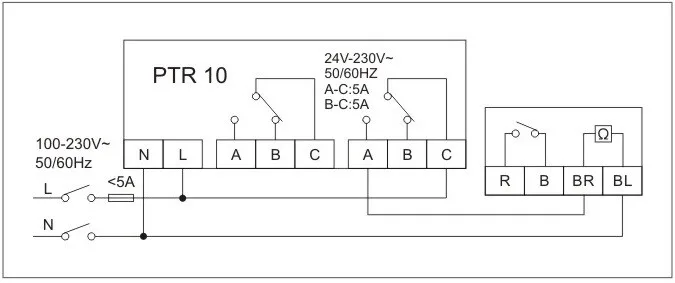

  • Receiver's wiring layout:

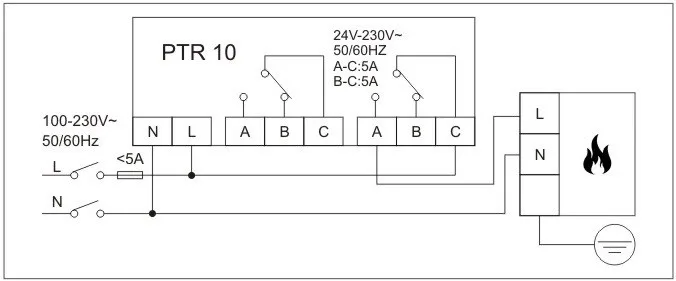

1. Burner(direct Control)
Burner(direct control)

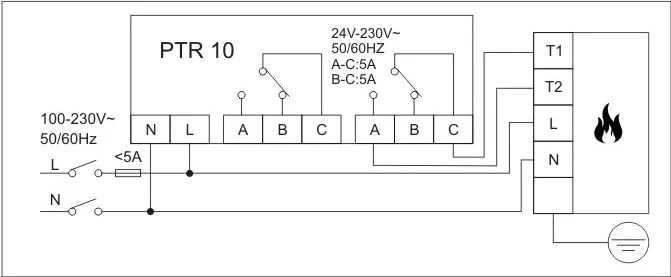

2. Combi Boiler
Combi boiler

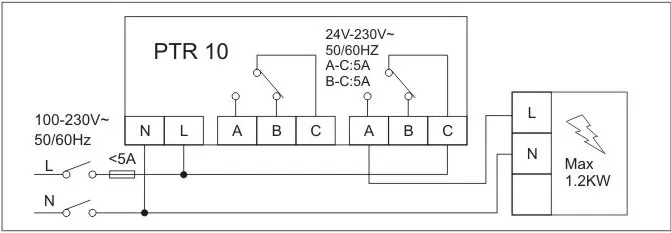

3. Electric Heater

Electric heater

4. Thermal Actuator

Thermal actuator

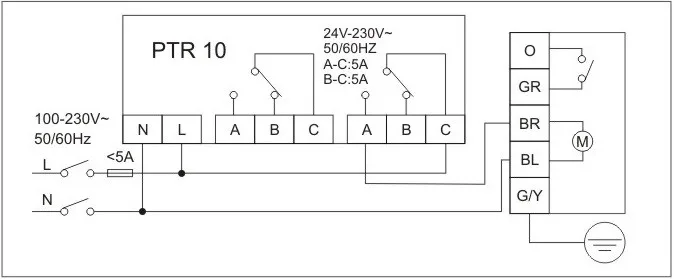

5. Zone Valve

Zone valve
